SuperE50 modular RTU

SuperE50 modular RTU is a powerful intelligent device specifically designed for integrated control systems. It is ideal for medium point-count applications requiring sophisticated measurement and control capability.SuperE50 features a selection of power supply, intelligent communication, and I/O modules,which allows flexibility in configuration and makes SuperE50 cost-effective. A broad array of communication interfaces and an extensive protocol library provide broad network compatibility. In addition, SuperE50 provides an open programming environment that supports all IEC61131-3 languages and a rich library of pre-engineered function blocks, which make it easy to develop applications.

Product Introduction
Product Parameters

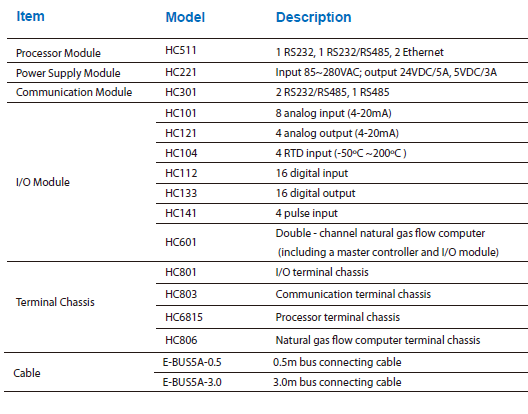

Product Selection
Product Applicaton and Performance

System Architecture


Features:

■ High performance 32-bit CPU with embedded real-time operating system (RTOS)

■ Modular design, can be easily adapted to your changing needs

■ Extensive communication interfaces and protocols such as Modbus RTU/ASCII/TCP, DNP3

■ More communication modules can be added to communicate with field devices

■ Open programming environment that supports all IEC61131-3 languages including LD, FBD, IL,

ST and SFC

■ Built-in watchdog timer, helping to protect your application from erroneous outputs

■ All the terminal blocks are isolated from the main control circuit

■ Wide operating temperature range, well suited for harsh environment applications: -40 ~ +70oC

■ Industry-standard design, using DIN rail for mounting, easy to install on-site
