Super32 Compact RTU

Super32 is a series of compact RTU that brings advanced automation capabilities and open programming to applications requiring less I/O points. It is built on a high performance 32-bit processor with embedded real-time operating system to meet all monitoring and control requirements. A broad array of communication interfaces and an extensive protocol library provide broad network compatibility. Super32 also offers an open programming environment that supports all IEC61131-3 languages. A rich library provides numerous pre-engineered function blocks, which project engineers find invaluable.

Product Introduction

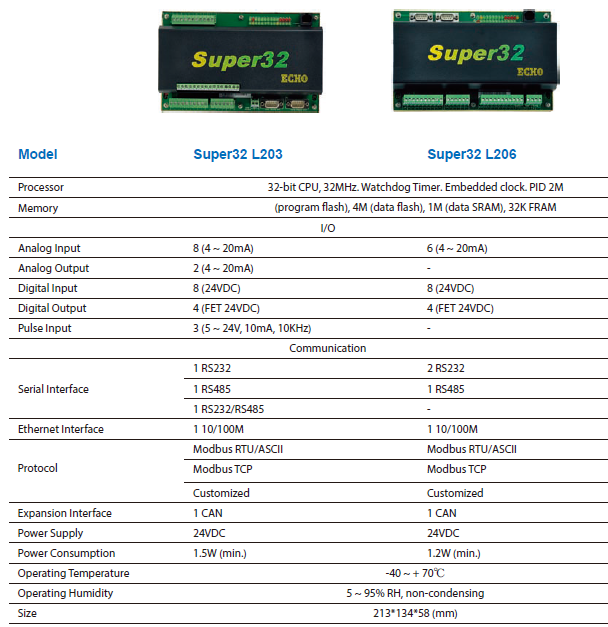

Product Parameters
Product Selection
Product Applicaton and Performance

Features

■ High performance 32-bit CPU with embedded real-time operating system (RTOS)

■ Compact design with up to 25 I/O points and 4 communication interfaces

■ Extensive communication protocols such as Modbus RTU/ASCII/TCP, DNP3

■ Open programming environment that supports all IEC61131-3 languages including LD, FBD, IL, ST

and SFC

■ Built-in watchdog timer helps to protect your application from erroneous outputs

■ All the terminal blocks are isolated from the main control circuit.

■ Low power consumption design, ideally for solar-powered installations

■ Wide operating temperature range, well suited for harsh environment applications: -40 ~ +70℃

■ Industry-standard design, using DIN rail for mounting, easy to install on-site
